Corner Detection with OpenCV

Corner detection is an approach used within computer vision systems to extract certain kinds of features and infer the contents of an image [Ref]. We have seen in the previous post how to perform an edge detection using the Sobel operator. Using the edges, we can define a corner as a point for which there are two dominant and different edge directions in a local neighborhood of the point.
One of the most used tool for corner detection is the Harris Corner Detector operator. OpenCV provide a function that implement this operator. The name of the function is CornerHarris(...) and the corners in the image can be found as the local maxima of the returned image. Let's see how to use it in Python:
imcolor = cv.LoadImage('stairs.jpg')
image = cv.LoadImage('stairs.jpg',cv.CV_LOAD_IMAGE_GRAYSCALE)
cornerMap = cv.CreateMat(image.height, image.width, cv.CV_32FC1)
# OpenCV corner detection
cv.CornerHarris(image,cornerMap,3)

for y in range(0, image.height):
 for x in range(0, image.width):
  harris = cv.Get2D(cornerMap, y, x) # get the x,y value
  # check the corner detector response
  if harris[0] > 10e-06:
   # draw a small circle on the original image
   cv.Circle(imcolor,(x,y),2,cv.RGB(155, 0, 25))

cv.NamedWindow('Harris', cv.CV_WINDOW_AUTOSIZE)
cv.ShowImage('Harris', imcolor) # show the image
cv.SaveImage('harris.jpg', imcolor)
cv.WaitKey()

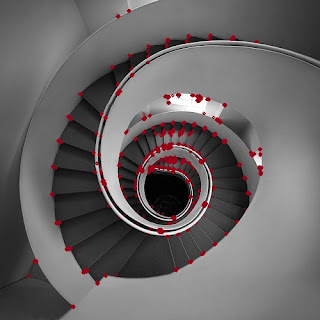

The following image is the result of the program:
The red markers are the corners found by the OpenCV's function.
